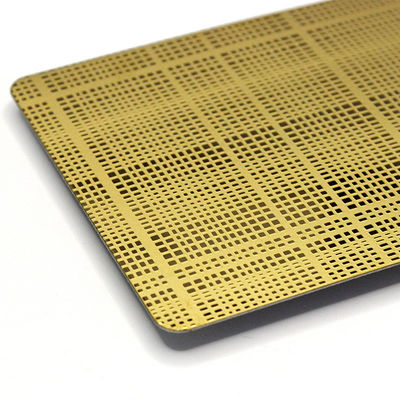

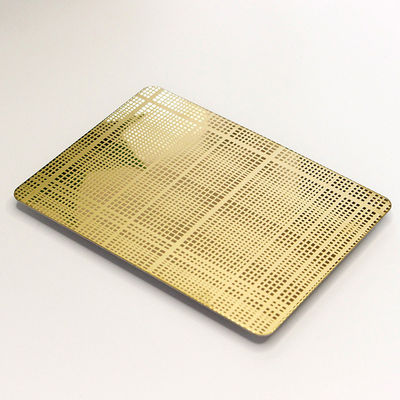

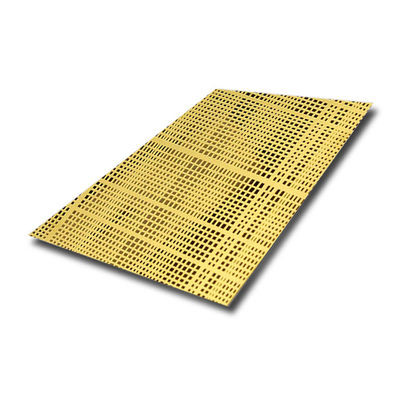

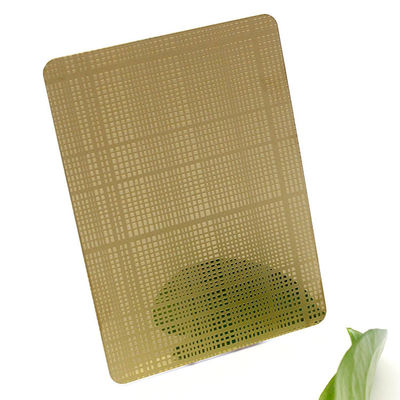

201 Super Mirror Gold PVD Stainless Steel Sheet Decor Plate
| محل منبع | چین |
|---|---|
| نام تجاری | MBT |
| گواهی | ISO, AISI, ASTM, GB, EN, DIN, JIS |
| شماره مدل | 201 |
| مقدار حداقل تعداد سفارش | 1 قطعه |
| قیمت | 30-40 USD |
| جزئیات بسته بندی | مورد چوبی |
| زمان تحویل | 7-15 روز کاری |
| شرایط پرداخت | L/C ، D/A ، D/P ، T/T |
| قابلیت ارائه | 7000-8000 تن در ماه |
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| نوع | ورق استیل ضد زنگ | استاندارد | ASTM ، AISI ، GB ، JIS ، DIN ، en |
|---|---|---|---|
| درجه | 304فولاد ضد زنگ | شکل | ورق |
| تکنیک | لهستانی/اچ | درمان سطحی | آینه/اچ |
| روکش رنگی | طلایی/نقره ای | فیلم پی وی سی | 70 فیلم PVC میکرون |
| ضخامت | 1.00 میلی متر | اندازه | 1219x3048mm |
توضیحات محصول
201 Super Mirror Gold PVD Stainless Steel Sheet Decor Plate
- Type: Etched Stainless Steel Sheet
- Standard: ASTM/AISI/GB/JIS/DIN/EN
- Packing: Wooden Pallet
- PVC Film:70 Micron PVC Film
- Delivery: Normally 7-15 days
- Material: Grade 304 Stainless Steel
- Feature: Sustainable
- Usage: Ceiling/Door/Wall
Application
Stainless steel etched sheet are being used on projects all over the world for exterior wall cladding, roofing, column covers, doors, signage, bridge cladding, commercial and residential kitchens, buses, trains, and airplane food handling equipment and so on.
| Grade | STS 304 | STS 316 | STS 430 | STS 201 |
|---|---|---|---|---|
| Elong(10%) | Above 40 | 30MIN | Above 22 | 50-60 |
| Hardness | ≤200HV | ≤200HV | Below 200 | HRB100,HV230 |
| Cr(%) | 18-20 | 16-18 | 16-18 | 16-18 |
| Ni(%) | 8-10 | 10-14 | ≤0.60% | 0.5-1.5 |
| C(%) | ≤0.08 | ≤0.07 | ≤0.12% | ≤0.15 |
| Product Information | |
| Type | Stainless Steel Sheet |
| Thickness | 0.3-3.0mm |
| Size | 1000*2000mm,1219*2438mm,1219*3048mm,customized ,max width 1500mm |
| Grade | 201 / 304 / 304L / 316 / 316L / 430 / 410 / etc |
| Available Finished | NO.4 / Hairline / Mirror / Etched / PVD Color / Embossed / Vibration / Sandblast / Combination / Lamination/ etc |
| Available Color | Gold / Rose gold / Blue / Champagne Gold / Copper / Bronze / Black / Purple / Green / etc |
| Origin | POSCO / JISCO / TISCO / LISCO / BAO STEEL / etc. |
| Packing way | PVC+ waterproof paper + strong sea-worthy wooden package |
|
Surface |
Definition |
Application |
| 2B |
Finished by heat treatment , picking or equivalent cold rolling , followed by skin pass to obtain adequate luster surface.
|
With bright and smooth surface ,easy for further grinding to obtain brighter surface ,suitable for medical instruments ,milk containers ,tableware and so on.
|
| BA |
Bright heat treatment after cold rolling.
|
Structural members .etc.kitchen utensil ,cutlery ,electric appliances ,medical instruments ,building decorations ,etc.
|
| NO.3/NO.4 |
Polished with No.150-240 abrasives.
|
Milky food processing equipment , medical instruments ,building decorations.
|
| HL |
Finished by polishing with abrasives of suitable grain size to obtain continuous streaks.
|
Building decorations ,such as elevators ,escalators ,door etc.
|
| 6K/8K |
A mirror-like reflective surface ,which is obtained by polishing with successively finer abrasives and buffing extensively with all grit lines are removed.
|
Building entrances,bulking column casting ,elevator's wall doors ,counters,sculptures etc. |
Description Of Etched Stainless Steel Sheet
Etched finish is created by a screen printing the protective acid resistant to a polished surface and acid etching the unprotected areas.The etching removes a thin layer of stainless steel and roughens the surface.And etched stainless steel sheet is a type of decorative stainless steel that has undergone a chemical or mechanical process to create patterns, designs, or textures on its surface.The etching process selectively removes material from specific areas, resulting in a contrast between the etched and unetched regions.This creates intricate and precise designs that are both aesthetically pleasing and durable.
Advantage Of Etched Stainless Steel Sheet
MEIBAOTAI has advanced production line, using professional materials, screen and ink, adopting development technology to make perfect etching effect. We can meet your own etched stainless steel design needs. Etched stainless steel sheets can be made with all-inclusive patterns, custom patterns, and even unique styles and patterns.
